AirStar Nova [ZDSPB CAD File Post]

AirStar Nova CAD

Models for the old Nova internals.

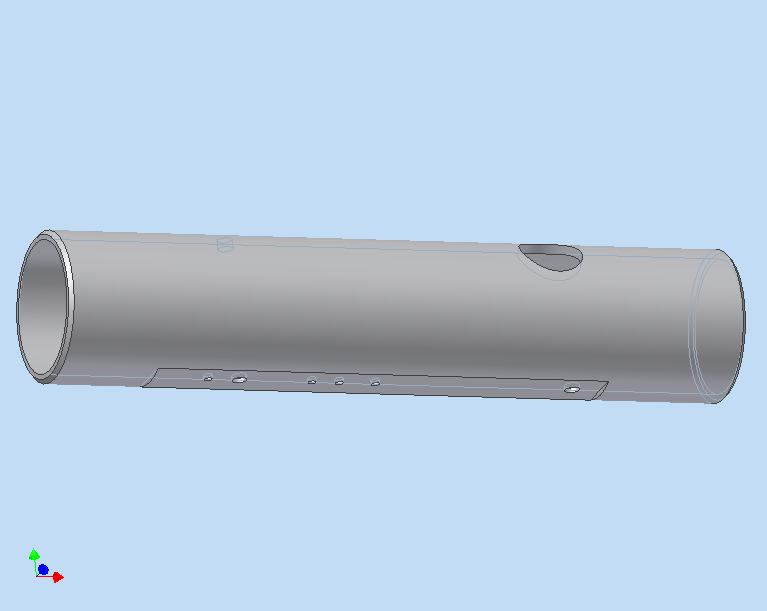

Part: Nova 700 body

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Body from a Nova 700 (right feed only). The feedneck isn't threaded.

Part: Nova 700 breech

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Breech section from a Nova 700 (again, right feed).

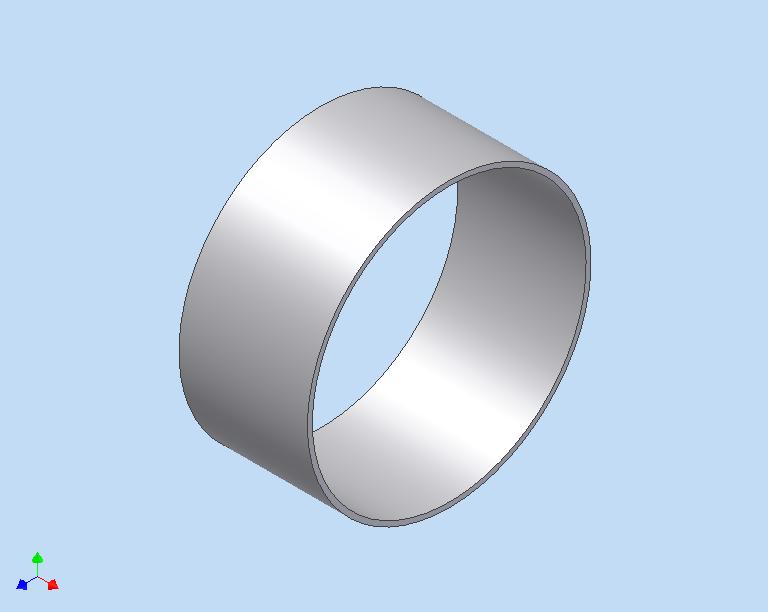

Part: Spacer ring

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Dump chamber spacer ring, used in all Novas.

Firing Components:

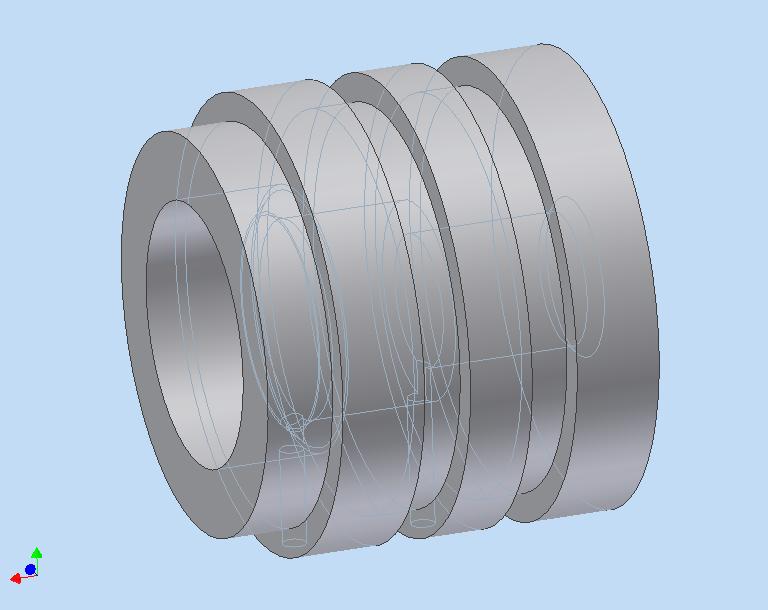

Part: Nova 700 spool housing

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Spool valve housing from a Nova 700.

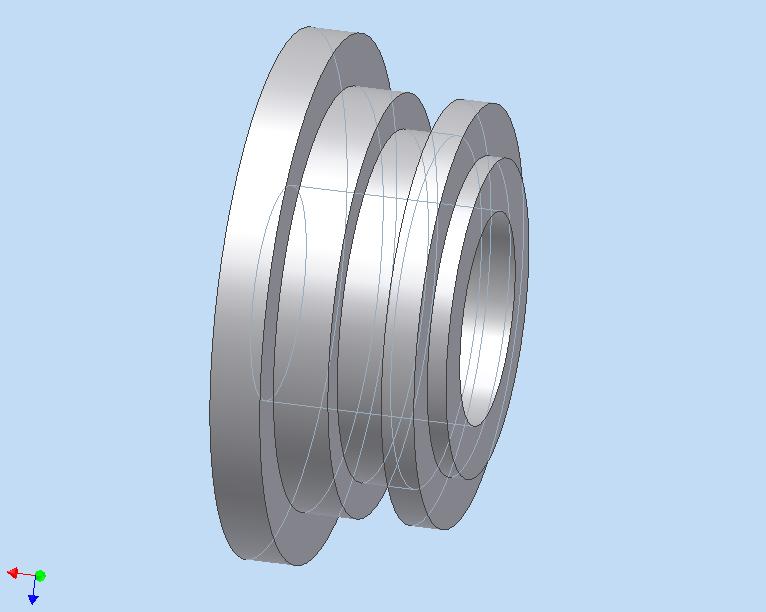

Part: Spool cap

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Endcap that fits onto the spool valve housing, for all Novas.

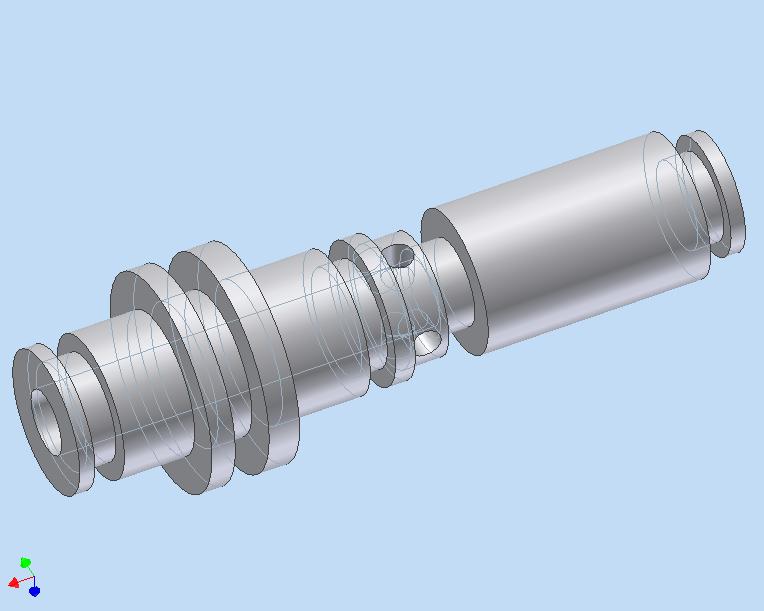

Part: Nova 700 spool valve

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Nova 700 spool valve.

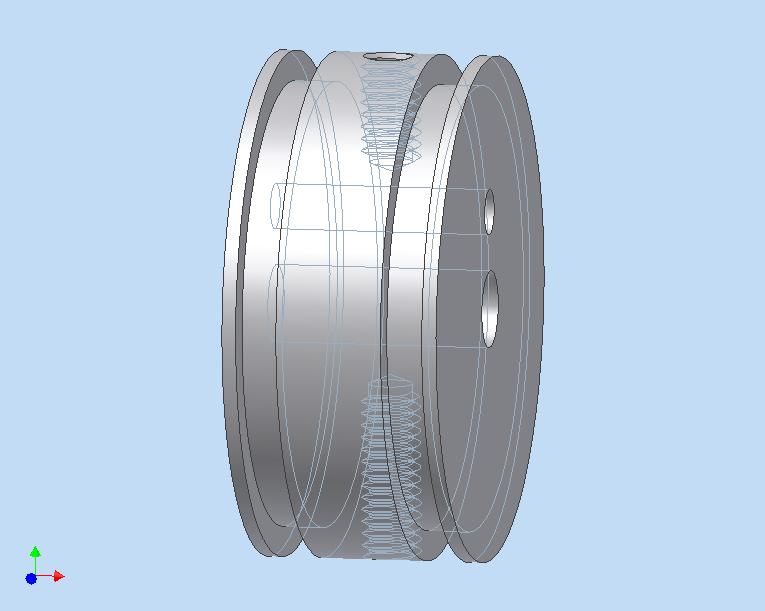

Part: SuperNova dicer partition

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: This metal piece (fitted with o-rings on the outside) is used to separate the rear of the SuperNova body from the enterance aperature to the spool valve. The rear of the SuperNova body acts as an integrated expansion chamber, this is used to separate it from the rest of the marker.

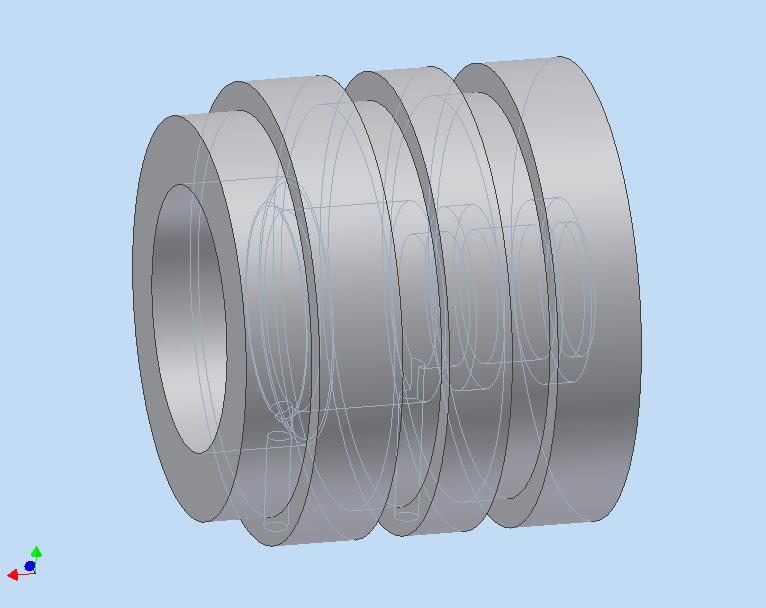

Part: SuperNova spool housing

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Spool valve housing from a SuperNova.

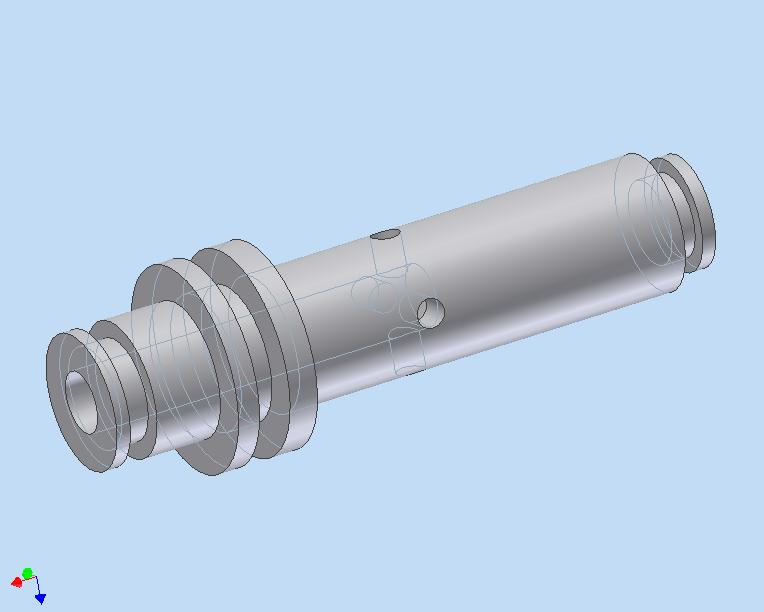

Part: SuperNova spool

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Spool valve from a SuperNova.

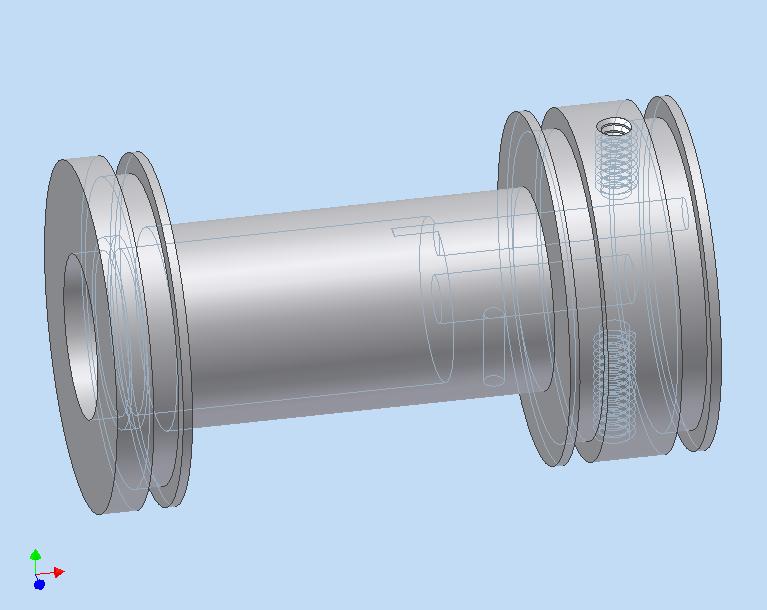

Part: Nova 700 regulator body

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Reg body (located in the rear of the Nova body) for a Nova 700. THis is functionally corect except it lacks the threading to connect the base seat.

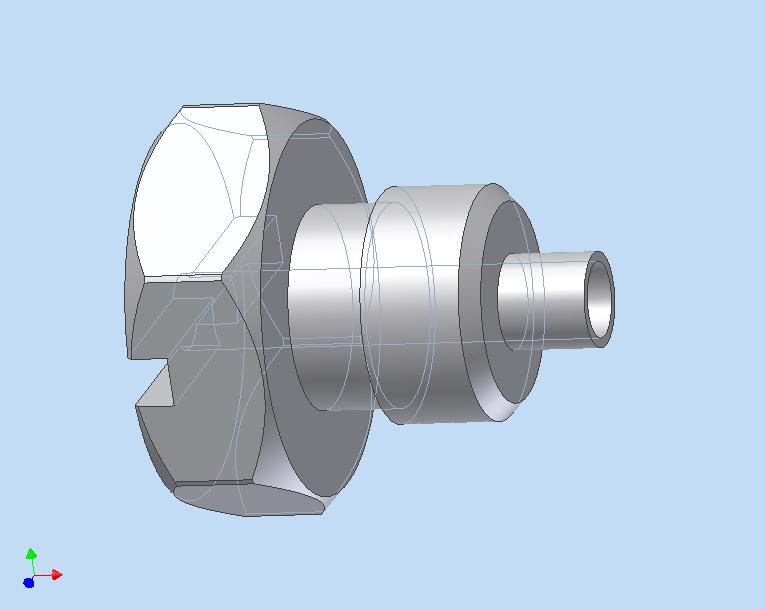

Part: Nova 700 regulator base seat

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: This component seals against the base seat carrier to form the Nova 700 regulator. This doesn't include the threading that attaches it inside the reg body.

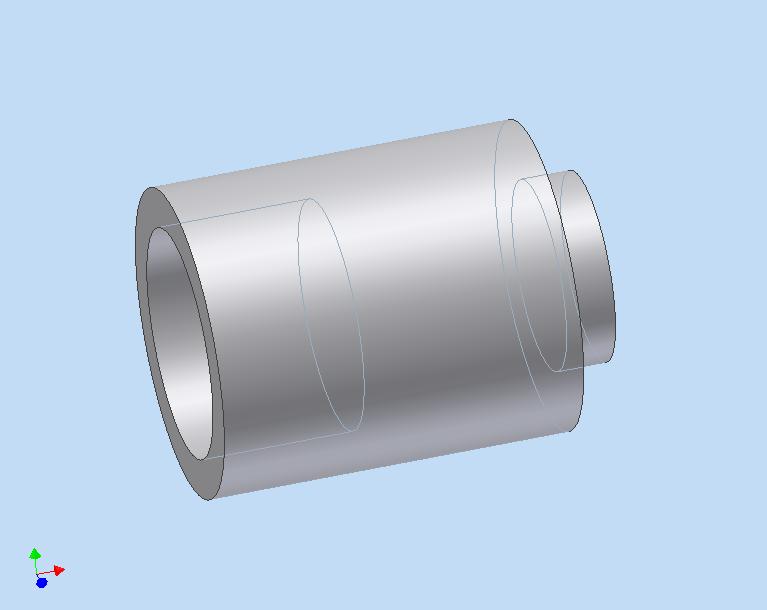

Part: Nova 700 regulator base seal carrier

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: This spring-loaded component (spring model not available) pushes against the front of the base seat. The reg's polymer base seal is housed inside this (not included in the model).

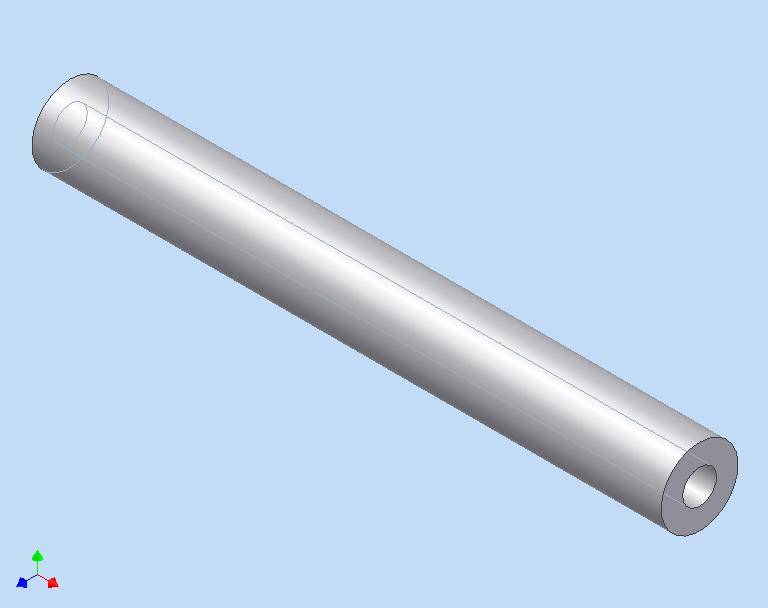

Part: Nova 700 regulator pin

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: This hollow pin extends through the base seat to connect the carrier in front with the reg piston in the rear of the reg.

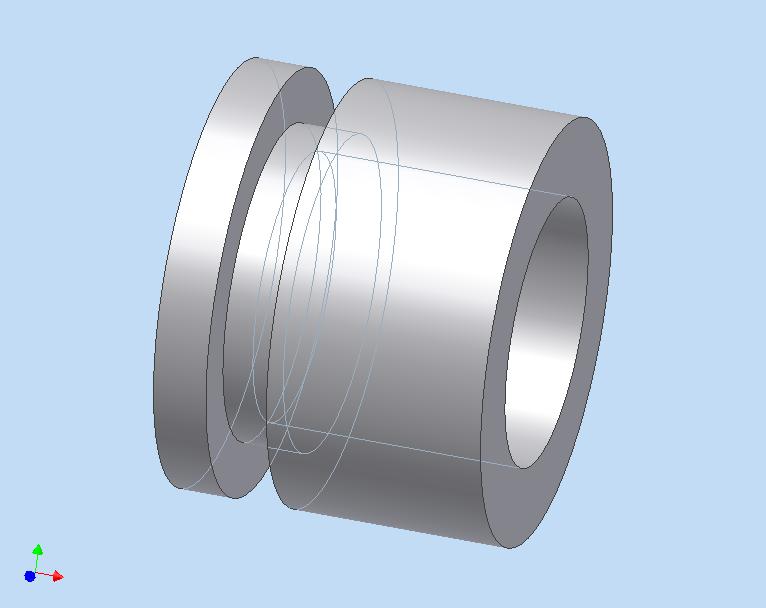

Part: Nova 700 regulator piston

Formats:
Inventor 10 part (.ipt)

Created by: Ydna
Description: Piston used in the Nova 700 reg.
