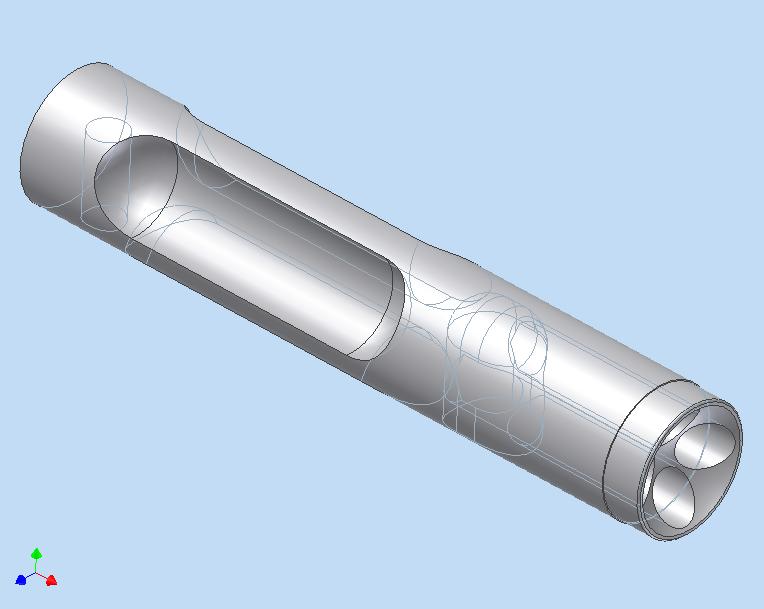

Part: Stock bolt v2 File type: Inventor 10 part file (.ipt) Created by: Ydna Description: Version-2 (current) stock nerve bolt. The previous version didn't have the depression at the front of the bolt for the SFT o-ring.

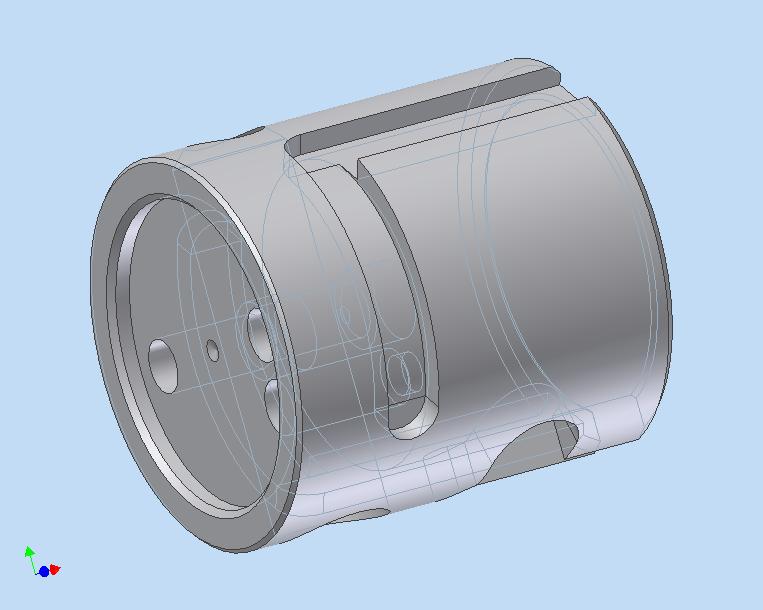

Part: Bolt guide carriage File type: Inventor 10 part file (.ipt) Created by: Ydna Description: Guide carriage for the bolt. The therading for the bearing spring's set screw isn't modeled.

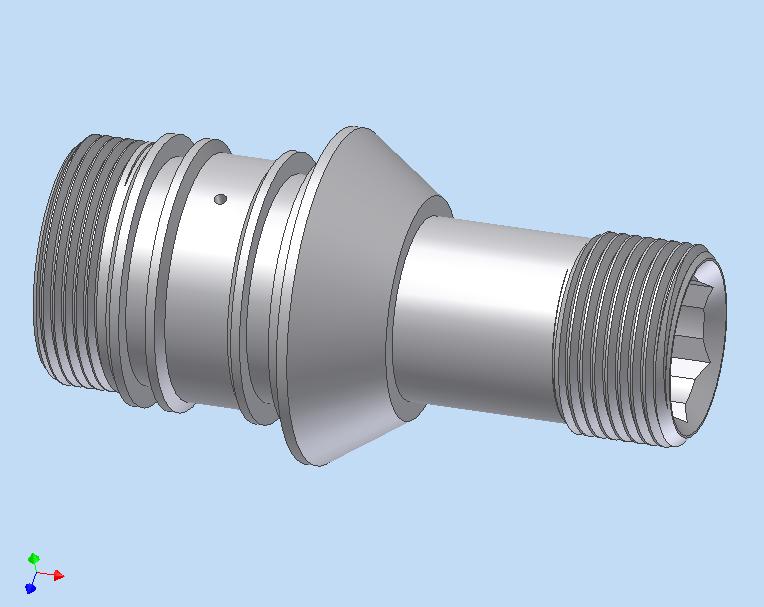

Part: LPR body File type: Inventor 10 part file (.ipt) Created by: Ydna Description: LPR body.

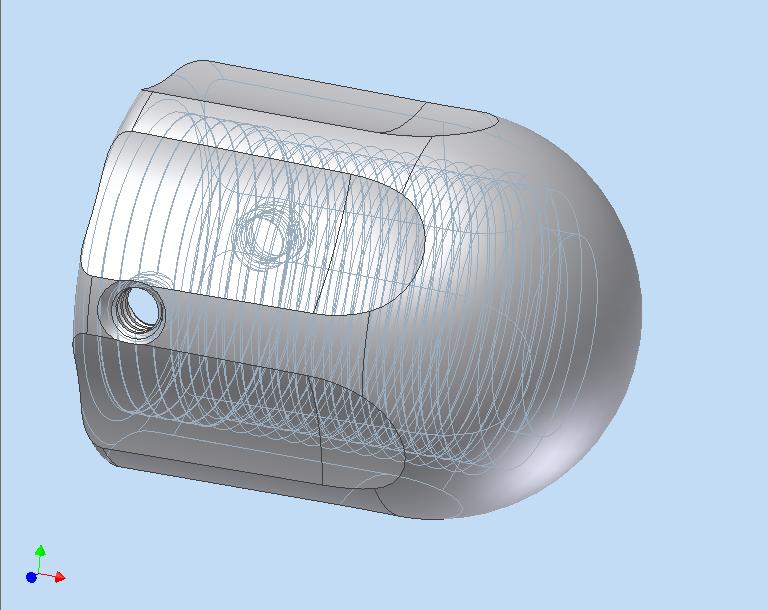

Part: LPR adjustment endcap File type: Inventor 10 part file (.ipt) Created by: Ydna Description: LPR adjustment endcap

Part: LPR extender cap File type: Inventor 10 part file (.ipt) Created by: Ydna Description: External portion for the factory LPR extender.

Part: LPR extender housing File type: Inventor 10 part file (.ipt) Created by: Ydna Description: Internal connection piece for the factory LPR extender.

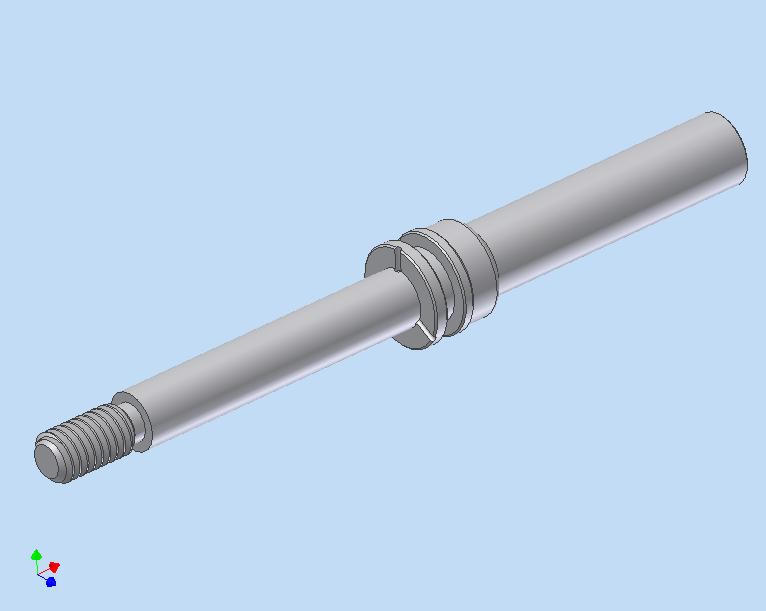

Part: Stock ram File type: Inventor 10 part file (.ipt) Created by: Ydna Description: Stock steel ram.

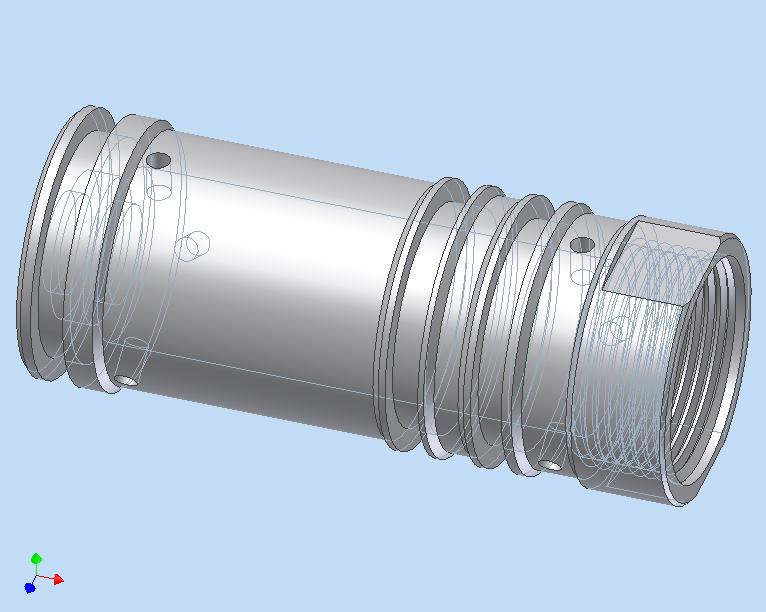

Part: Piston housing, ram section File type: Inventor 10 part file (.ipt) Created by: Ydna Description: Ram (rear) section of the hammer/valve piston.

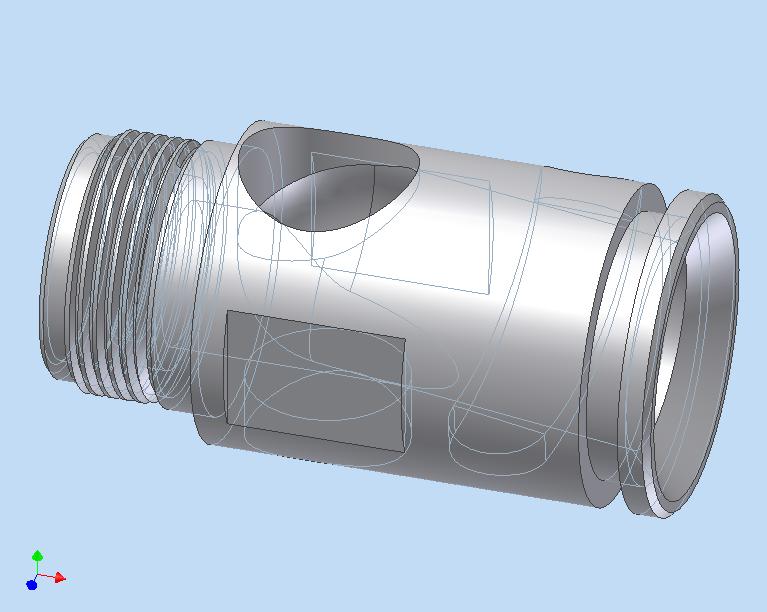

Part: Piston housing, valve section File type: Inventor 10 part file (.ipt) Created by: Ydna Description: Valve (front) section of the hammer/valve piston.
