There isn't too much here, but a few things.

Freak Reball Insert:
I made this back when SP first had the idea to release out a limited batch of stainless steel reball inserts in April 2006. I tried my hand with an aluminum version instead, with 0.670" inside diameter, length 5.060", outside diameter of 0.745". I didn't turn the outside diameter, rather just used 3/4" material and sanded it down.

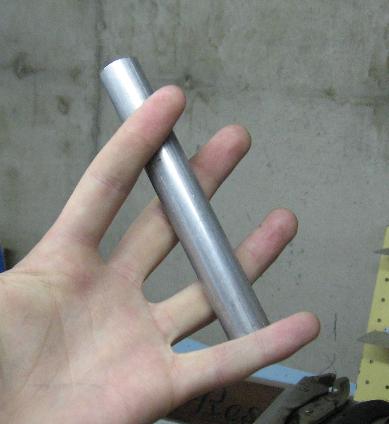

Aluminum reball insert
Aluminum reball insert

I didn't anodize it or anything, just left it raw. As a result of that it got pretty banged up on the inside.

As stated, SP did a limited run of these back in mid 2006 but they were all sold out instantly, so there isn't really a source for them right now (at the time of this writing).

Modded Freak Barrel:
Common modification, this one involving an old Shocker All American barrel back which I bored out to hold a Freak insert. I placed one o-ring groove in the rear of the barrel and let the insert hold itself inside the lip of the barrel front (Freak backs normally have two o-rings). I also had to bore out the front of the barrel and re-tap it to screw onto the front, because Freak barrels are a little shorter than All Americans. It was my first time tapping internal threads on this junk chinese lathe, but it worked out okay this time (after I did a few practice pieces).

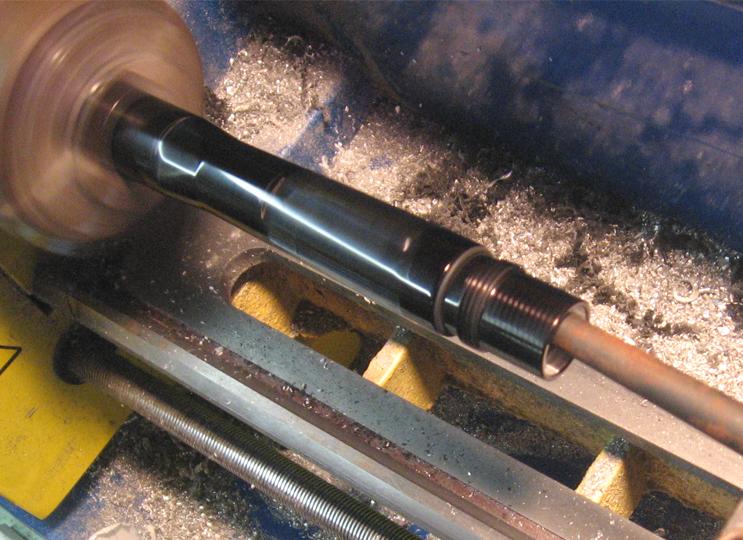

Modified Freak barrel
Modified Freak barrel

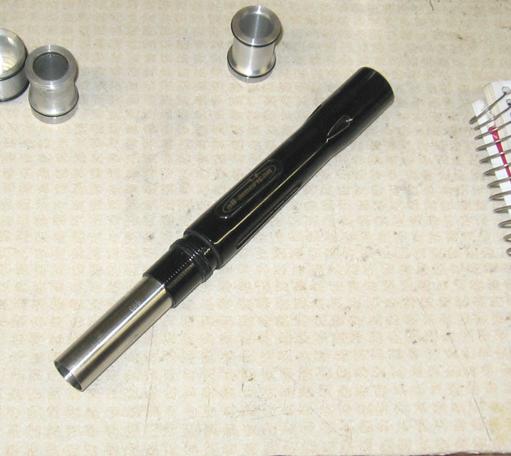

Modified Freak barrel with stainless insert
Modified Freak barrel with stainless insert

Freak-to-Autococker front adapter:
This was a custom project I built for a friend of mine. He wanted to use one of his Autococker barrels as the "front" section for his Superfreak system. To accomplish this, I built a barrel adapter for him which had male Freak/AA threads on the rear, and female Autococker threads on the front.

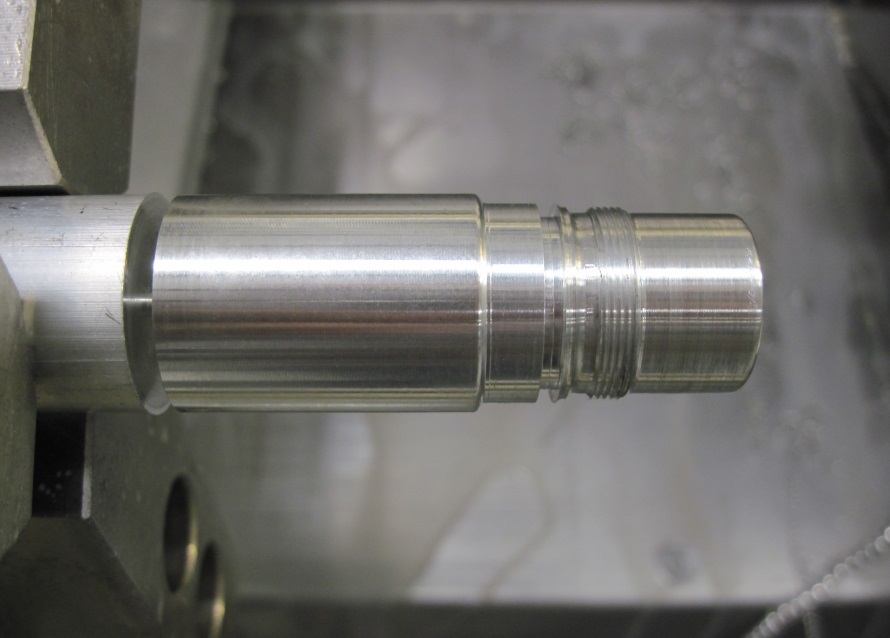

Barrel adapter on CNC lathe (side 1)
Barrel adapter on manual lathe (side 2)
The adapter was made in two setups, first the outside was created on a CNC lathe, then the inside was drilled and bored out on a traditional lathe. I performed the outside cuts then handed the part off to my friend who finished up the inside.

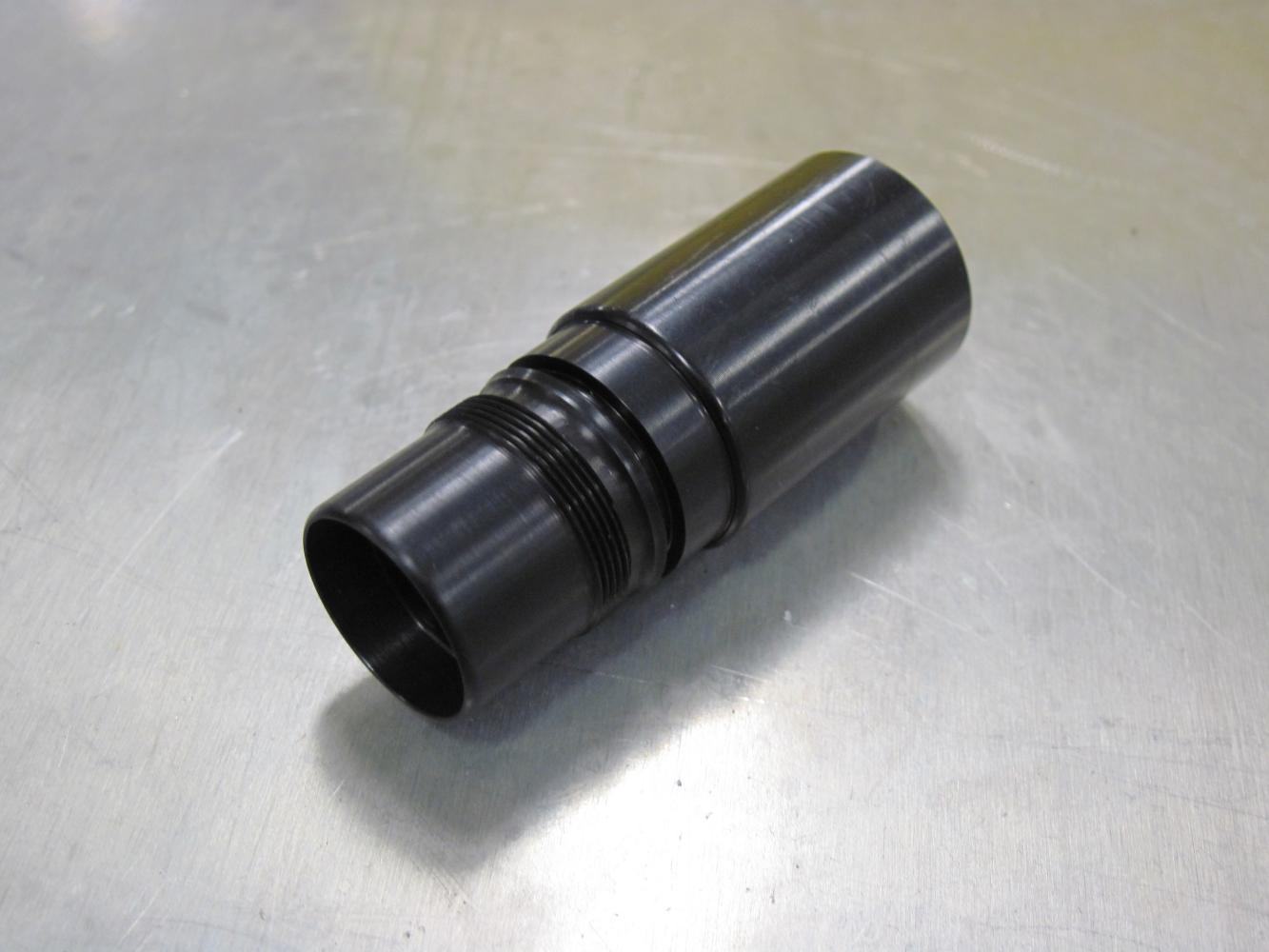

Barrel adapter finished
Barrel adapter finished

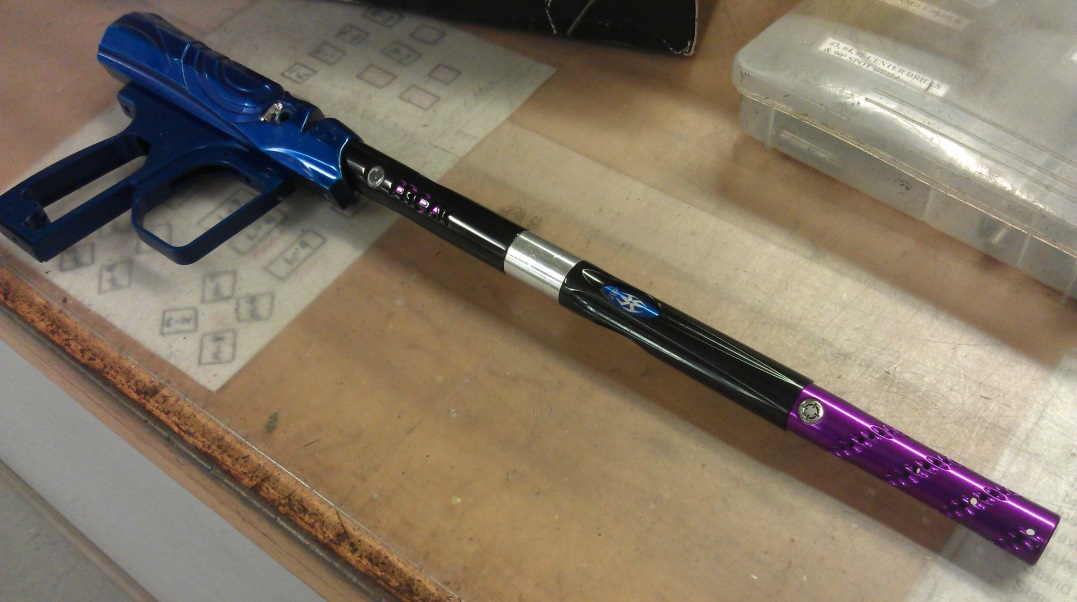

Above you can see the finished adapter, and a silly picture where I installed it on a blue Strange Shocker with a 2002 Freak back leading into a Superfreak back leading into a 10" Freak front. This is NOT how the barrel is intended to be used; I simply thought the picture would be funny. The barrel adapter is actually used on a Superfreak back leading into a 6" stubby barrel fitted with an Apex tip, installed on a BT TM15 marker.
